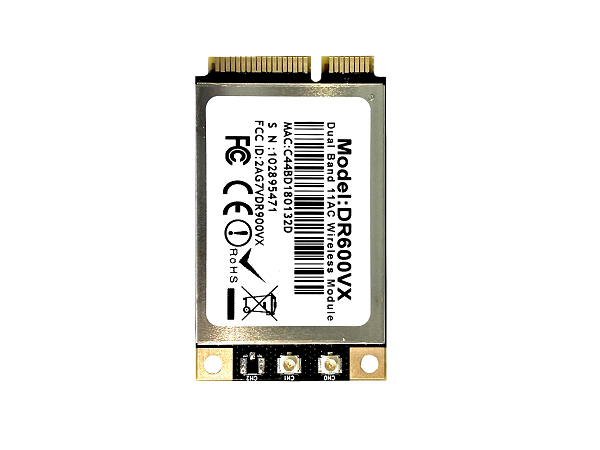

Qualcomm-Atheros-QCA9880-2T2R-MIMO-802.11ac-Mini-PCIe-Wi-Fi-Module-Dual-Band-2.4GHz-5GHz

Qualcomm-Atheros QCA9880 chipset

2.4GHz max 24dBm & 5GHz max 23dBm output power

IEEE 802.11accompliant & backward compatible with 802.11a/b/g/n

2x2 MIMO Technology, up to 867Mbps

Mini PCI Express edge connector

Support the Frequency 4920MHz~4980MHz

RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals

Supports Spatial Multiplexing, Cyclic-Delay Diversity (CDD), Low-Density Parity Check

(LDPC) Codes, Maximal Ratio Combining (MRC), Space Time Block Code (STBC)

Supports IEEE 802.11d, e, h, i, k, r, v time stamp, and w standards

Supports Dynamic Frequency Selection (DFS)

Wallys Communications (Suzhou) Co LTD  develops, designs and manufactures wireless communication products, including routers, network cards, AP and antennas. Customization is also supported, mainly for export market, welcome to consult.

EMAIL:sales@wallystech.com

WEB:https://www.wallystech.com/

Specifications




Symbol	Parameter
Chipset	QCA9880
Host Interface	Mini PCI Express 1.1 Standard
Antenna Connector	2 x UF.L
Frequency Range	2.4GHz: 2.412GHz to 2.472GHz 5GHz: 4.920GHz to 5.825GHz
Operating Voltage	3.3V DC
Power Consumption	5W(Max)
Modulation Techniques	OFDM: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM
Environmental Temperature	Operating: -40°C to 70°C, Storage: -40°C to 90°C
Environmental Humidity, non-condensing	Operating: 5% to 95%, Storage: Max. 90%
ROHS Compliance	YES
Dimensions (W×H×D)	30.0mm × 50.9mm × 3.2mm





RF Performance Table





Operating Mode	Data Rate	RX Sensitivity	Tolerance
2.4 GHz 802.11b	1Mbps	-95dBm	±2dB
	2Mbps	-94dBm	±2dB
	5.5Mbps	-92dBm	±2dB
	11Mbps	-90dBm	±2dB
2.4 GHz 802.11g	6Mbps	-94dBm	±2dB
	9Mbps	-93dBm	±2dB
	12Mbps	-92dBm	±2dB
	18Mbps	-90dBm	±2dB
	24Mbps	-88dBm	±2dB
	36Mbps	-85dBm	±2dB
	48Mbps	-81dBm	±2dB
	54Mbps	-80dBm	±2dB
2.4 GHz 802.11n HT20	MCS0	-93dBm	±2dB
	MCS1	-91dBm	±2dB
	MCS2	-89dBm	±2dB
	MCS3	-84dBm	±2dB
	MCS4	-83dBm	±2dB
	MCS5	-78dBm	±2dB
	MCS6	-78dBm	±2dB
	MCS7	-76dBm	±2dB
2.4 GHz 802.11n HT20	MCS0	-92dBm	±2dB
	MCS1	-88dBm	±2dB
	MCS2	-85dBm	±2dB
	MCS3	-82dBm	±2dB
	MCS4	-79dBm	±2dB
	MCS5	-75dBm	±2dB
	MCS6	-75dBm	±2dB
	MCS7	-73dBm	±2dB




Operating Mode	Data Rate	TX Power		Tolerance
		1 Chain	2 Chains
2.4 GHz                        802.11b	1Mbps	20dBm	23dBm	±2dB
	2Mbps	20dBm	23dBm	±2dB
	5.5Mbps	20dBm	23dBm	±2dB
	11Mbps	20dBm	23dBm	±2dB
2.4 GHz                          802.11g	6Mbps	21dBm	24dBm	±2dB
	9Mbps	21dBm	24dBm	±2dB
	12Mbps	21dBm	24dBm	±2dB
	18Mbps	21dBm	24dBm	±2dB
	24Mbps	21dBm	24dBm	±2dB
	36Mbps	20dBm	23dBm	±2dB
	48Mbps	19dBm	22dBm	±2dB
	54Mbps	19dBm	22dBm	±2dB
2.4 GHz                       802.11n HT20	MCS0	21dBm	24dBm	±2dB
	MCS1	21dBm	24dBm	±2dB
	MCS2	21dBm	24dBm	±2dB
	MCS3	20dBm	23dBm	±2dB
	MCS4	20dBm	23dBm	±2dB
	MCS5	20dBm	23dBm	±2dB
	MCS6	19dBm	22dBm	±2dB
	MCS7	19dBm	22dBm	±2dB
2.4 GHz                    802.11n HT40	MCS0	21dBm	24dBm	±2dB
	MCS1	21dBm	24dBm	±2dB
	MCS2	21dBm	24dBm	±2dB
	MCS3	20dBm	23dBm	±2dB
	MCS4	20dBm	23dBm	±2dB
	MCS5	20dBm	23dBm	±2dB
	MCS6	19dBm	22dBm	±2dB
	MCS7	18dBm	21dBm	±2dB
