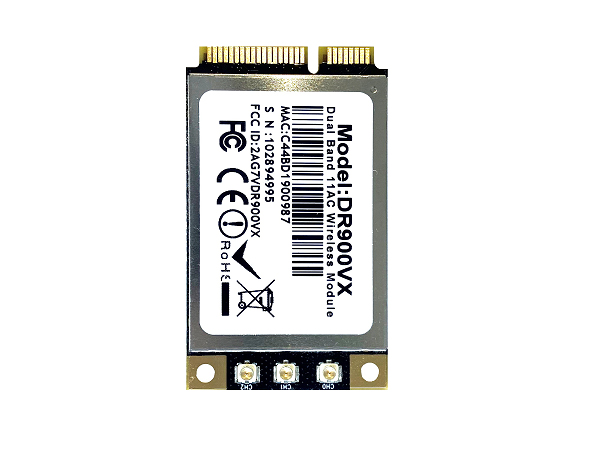

QCA9880/QCA9882 802.11ac  3x3 2.4G/5G FCC/CE/IC-wallys

Qualcomm-Atheros QCA9880 chipset

2.4GHz max 26dBm & 5GHz max 25dBm output power

IEEE 802.11ac compliant & backward compatible with 802.11a/b/g/n

3x3 MIMO Technology, up to 1.3Gbps

Mini PCI Express edge connector

RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals

Supports Spatial Multiplexing, Cyclic-Delay Diversity (CDD), Low-Density Parity Check (LDPC) Codes, Maximal Ratio

Combining (MRC), Space Time Block Code (STBC)

Supports IEEE 802.11d, e, h, i, k, r, v time stamp, and w standards

Supports Dynamic Frequency Selection (DFS)

FCC,CE and IC Certification

Symbol	Parameter
Chipset	QCA9880
Host Interface	Mini PCI Express 1.1 Standard
Antenna Connector	3 x UF.L
Frequency Range	2.4GHz: 2.412GHz to 2.472GHz 5GHz: 4.920GHz to 5.825GHz
Operating Voltage	3.3V DC
Power Consumption	5W(Max）
Modulation Techniques	OFDM: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM
Environmental Temperature	Operating: -40°C to 70°C, Storage: -40°C to 90°C
Environmental Humidity, non-condensing	Operating: 5% to 95%, Storage: Max. 90%
ROHS Compliance	YES
Dimensions (W×H×D)	30.0mm × 50.9mm × 3.2mm

GPIO Pin	Function
GPIO0	WLAN_DIS
GPIO1	WLAN_LED
GPIO2	MCI_CLK_IN
GPIO3	MCI_CLK_OUT
GPIO4	MCI_DATA_OUT
GPIO5	MCI_DATA_IN
GPIO12	TMS
13	TCK
14	TDI
15	TDO
16	CPU_WARM_RESET / JTEG RESET
17	GPIO17_BT_LED
19	ANT_A
20	ANT_B
21	FEM_BS
22	FEM_MODE





MiniPCIe Slot Pin Assignment




TOP Side		Bottom Side
1	PCIE_WAKE_L	2	VCC_3V3
3	NC	4	GND
5	NC	6	NC
7	PCIE_CLKREQ_L	8	NC
9	GND	10	NC
11	PCIE_REFCLK_N	12	NC
13	PCIE_REFCLK_P	14	NC
15	GND	16	NC
Mechanical key
17	NC	18	GND
19	NC	20	GPIO0_WLAN_DIS
21	GND	22	PCIE_RST_L
23	PCIE_TX_N	24	VCC_3V3
25	PCIE_TX_P	26	GND
27	GND	28	NC
29	GND	30	NC
31	PCIE_RX_P	32	NC
33	PCIE_RX_N	34	GND
35	GND	36	NC
37	GND	38	NC
39	VCC_3V3      (RESERVED)	40	GND
41	VCC_3V3      (RESERVED)	42	NC
43	GND	44	GPIO1_WLAN_LED
45	NC	46	GPIO17_BT_LED
47	NC	48	NC
49	NC	50	GND
51	NC	52	VCC_3V3





Version





Version	CPU	Feature
DR900VX	QCA9880
DR900VX-i	QCA9890	Operation Temp. Up to 85°
DR900VX-4.9	QCA9880	Support 4.9G
