IPQ4019/IPQ4029 OpenWrt 2.4/5G dual bands 802.11ac
Description

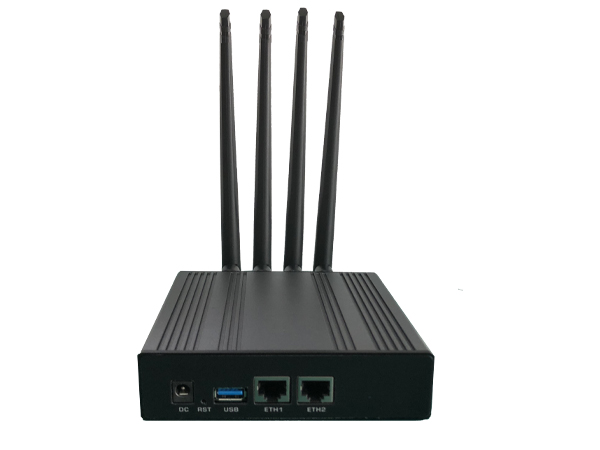

DR-AP40X9-A  is a 2x2 2.4G&5G high power Radio AP Router which including 1x  DR40X9(IPQ4019/IPQ4029) Board;2 x 2.4G&5G dipole Antennas; 1 x PSU(DC power or PoE);
1 x Enclosure.
Dipole antenna
■  2 x 2.4G&5G Antenna
■  5dBi 2.4GHz/5Ghz
■ SMA Plug interface
■ Plastic rod of black
■ RoHS compliance
Enclosure
■  Dimension: 132x 119 x 34 mm
■  Aluminum alloy material
■  Support WallysDR40X9


    Absolute Maximum Rating

    Parameter
    Rating
    Unit
    Supply Voltage
    24V~48
    V
    Operating Temperature Range
    -40 to +70
    oC
    Storage Temperature Range
    -45 to +105
    oC
    Operating Humidity Range
    5 to +95 (non-condensing)
    %
    Storage Humidity Range
    0 to +90 (non-condensing)
    %

    Hardware Specifications


    Symbol
    Parameter
    CPU
    IPQ4029/IPQ4019(Quad core ARM Cortex A7 at 716.8 MHz)
    Antenna Connector
    2 x 5G MMCX connectors;2x2.4G MMCX
    10/100/1000Mbps Gigabit Ethernet
    2xRJ45
    SFP connector
    1xSFP fiber module connector (optional)
    3G/4G connector
    1xminipcie 3G/4G connector support with two sim card
    USB connector
    1xUSB 3.0 connector
    POE
    24V~48V passive POE
    DC Jack
    24V~48V power supply
    ROHS Compliance
    YES
    Dimension
    115mm x 105mm x 16mm
    Max Power
    48.1V x 0.180A= 8.658W
    Nor Flash
    2MB~32MB
    Nand Flash
    128MB
    DDR
    256MB~512MB

    Radio TX Specifications(5180MHz-5825MHz)

    Operating Mode
    Data Rate
    Power
    Tolerance
    1 Chain
    2 Chains
    802.11a
    6 Mbps
    27dBm
    30dbm
    ±2dB
    54 Mbps
    23dBm
    26dbm
    ±2dB
    802.11n HT20
    MCS0, MCS8
    26dBm
    29dbm
    ±2dB
    MCS7, MCS15
    22dBm
    25dbm
    ±2dB
    802.11n HT40
    MCS0, MCS8
    25dBm
    28dbm
    ±2dB
    MCS7, MCS15
    21dBm
    24dbm
    ±2dB
    802.11ac
    MCS0, MCS10,MCS20
    25dBm
    28dbm
    ±2dB
    MCS9,MCS19,MCS29
    19dBm
    22dbm
    ±2dB

    Radio RX Specifications(5180MHz-5825MHz)


    Operating Mode
    Data Rate
    Sensitivity
    802.11a
    6 Mbps
    -96dBm
    54 Mbps
    -78dBm
    802.11n HT20
    MCS0, MCS8
    -93dBm
    MCS7, MCS15
    -73dBm
    802.11n HT40
    MCS0, MCS8
    -90dBm
    MCS7, MCS15
    -70dBm
    802.11AC HT40
    MCS0, MCS10,MCS20
    -90dBm
    MCS9,MCS19,MCS29
    -67dBm
    802.11AC HT80
    MCS0, MCS10,MCS20
    -88dBm
    MCS9,MCS19,MCS29
    -62dBm

    Radio TX Specifications(2412MHz-2482MHz)


    Operating Mode
    Data Rate
    Power
    Tolerance
    1 Chain
    2 Chains
    802.11g
    6 Mbps
    27dbm
    30dbm
    ±2dB
    54 Mbps
    25dbm
    28dbm
    ±2dB
    802.11n HT20
    MCS0, MCS8
    26dbm
    29dbm
    ±2dB
    MCS7, MCS15
    25dbm
    28dbm
    ±2dB
    802.11n HT40
    MCS0, MCS8
    26dbm
    29dbm
    ±2dB
    MCS7, MCS15
    24dbm
    27dbm
    ±2dB

    Radio RX Specifications(2412MHz-2482MHz)

    Operating Mode
    Data Rate
    Sensitivity
    802.11g
    6 Mbps
    -96dBm
    54 Mbps
    -78dBm
    802.11n HT20
    MCS0, MCS8
    -93dBm
    MCS7, MCS15
    -73dBm
    802.11n HT40
    MCS0, MCS8
    -90dBm
    MCS7, MCS15
    -70dBm

    Version

    Item
    Information
    DR40X9-1
    CPU is IPQ4019
    DR40X9-2
    CPU is IPQ4029

    LED & GPIO header

    Item
    Information
    Note
    1
    PWR LED

    2
    Eth1 LED

    3
    Eth2 LED

    4
    2.4G LED
    GPIO32
    5
    5G LED
    GPIO50
    6
    Strength LED
    GPIO36
    7
    Strength LED
    GPIO39
    8
    NC

    9
    GND

    10
    Uart1_TX
    GPIO8
    11
    Uart1_RX
    GPIO9
    12
    NC

    13
    NC

    14
    NC

    15
    GND

    16
    PWR


    Serial Port

    Item
    Information
    1
    PWR
    2
    Uart0 TX
    3
    Uart0 RX
    4
    GND

    GPIO

    Item
    Information
    GPIO11
    Control for the switch of SIM cards
    Wallys Communications (Suzhou) Co LTD  develops, designs and manufactures wireless communication products, including routers, network cards, AP and antennas. Customization is also supported, The market is global, We're a supplier to Facebook. welcome to consult. (Web:wallystech  com)
