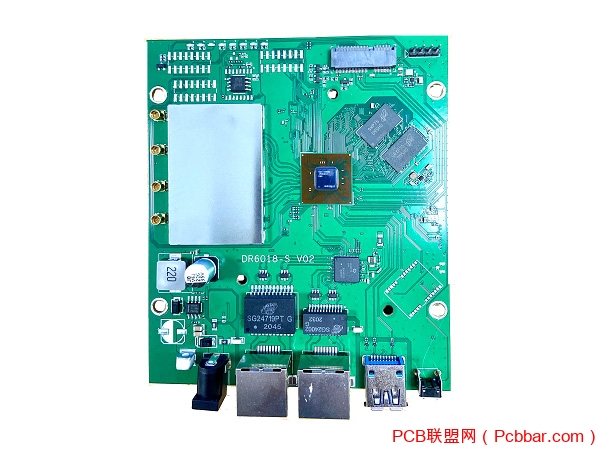

DR6018-S V02 IPQ6010/IPQ6018/IPQ6000

Quad-core ARM 64bit A53 @1.8GHz Processor

1GB DDRL3L System Memory

8MB NOR Flash, 256MB NAND Flash

Supports Dynamic Frequency Selection (DFS)

2x2 On-board 2.4GHz radio, up to 573Mbps physical Data Rate

2x2 On-board 5GHz radio, up to 1201Mbps physical Data Rate

IPQ6010

Absolute Maximum Rating




Parameter	Rating	Unit
Supply Voltage	24V~48V(DC Jack)	V
Operating Temperature Range	-40 to +70	oC
Storage Temperature Range	-45 to +105	oC
Operating Humidity Range	5 to +95 (non-condensing)	%




Hardware Specifications




Symbol	Parameter
CPU	Qualcomm-Atheros IPQ6010
CPU Frequency	Quad-core ARM 64 bit A53 @1.8 GHz processor
System Memory	1GB (2x 512MB) DDR3L 16-bit interface with 32-bit memory bus design
Ethernet Port	1 x 1Gbps Ethernet Ports & POE 1x 1Gbps Ethernet Ports
NGFF Slot	M.2 (NGFF) “E Key” Socket with MiniPCIe 3.0(For WiFi Module)
SD Card Slot	1x SD Card Slot(Option)
USB /header	1x USB 3.0 Port(Option)
POE	24V~48V passive POE/Active POE(Suport 802.3bt)
DC Jack	24V~48V power supply
LED header	2.0 pitch pin header
Serial Port	1x Serial Port 4 Pin Connector
Wireless	On-board 2x2 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, max 23dBm per chain On-board 2x2 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax, max 20dBm per chain 4 x MMCX Connectors
Nor Flash	8MB
Nand Flash	256MB
DDR	256MB~512MB
Dimension	125mm x 105mm x 20mm




Radio TX Specifications(5180MHz-5825MHz)




Operating Mode	Data Rate	Power		Tolerance
		1 Chain	2 Chains
5Ghz 802.11ax HE20	MCS0	20dBm	23dbm	±2dB
	MCS1	20dBm	23dBm	±2dB
	MCS2	20dBm	23dBm	±2dB
	MCS3	20dBm	23dBm	±2dB
	MCS4	19dBm	22dBm	±2dB
	MCS5	18dBm	21dBm	±2dB
	MCS6	17dBm	20dBm	±2dB
	MCS7	16dBm	19dBm	±2dB
	MCS8	15dBm	18dBm	±2dB
	MCS9	14dBm	17dBm	±2dB
	MCS10	13dBm	16dBm	±2dB
	MCS11	13dBm	16dbm	±2dB
5Ghz 802.11ax HE400	MCS0	20dBm	23dbm	±2dB
	MCS1	20dBm	23dBm	±2dB
	MCS2	20dBm	23dBm	±2dB
	MCS3	20dBm	23dBm	±2dB
	MCS4	19dBm	22dBm	±2dB
	MCS5	18dBm	21dBm	±2dB
	MCS6	17dBm	20dBm	±2dB
	MCS7	16dBm	19dBm	±2dB
	MCS8	15dBm	18dBm	±2dB
	MCS9	14dBm	17dBm	±2dB
	MCS10	13dBm	16dBm	±2dB
	MCS11	13dBm	16dbm	±2dB
5Ghz 802.11ax HE80	MCS0	20dBm	23dbm	±2dB
	MCS1	20dBm	23dBm	±2dB
	MCS2	20dBm	23dBm	±2dB
	MCS3	20dBm	23dBm	±2dB
	MCS4	19dBm	22dBm	±2dB
	MCS5	18dBm	21dBm	±2dB
	MCS6	17dBm	20dBm	±2dB
	MCS7	16dBm	19dBm	±2dB
	MCS8	15dBm	18dBm	±2dB
	MCS9	14dBm	17dBm	±2dB
	MCS10	13dBm	16dBm	±2dB
	MCS11	13dBm	16dbm	±2dB
