Product Description

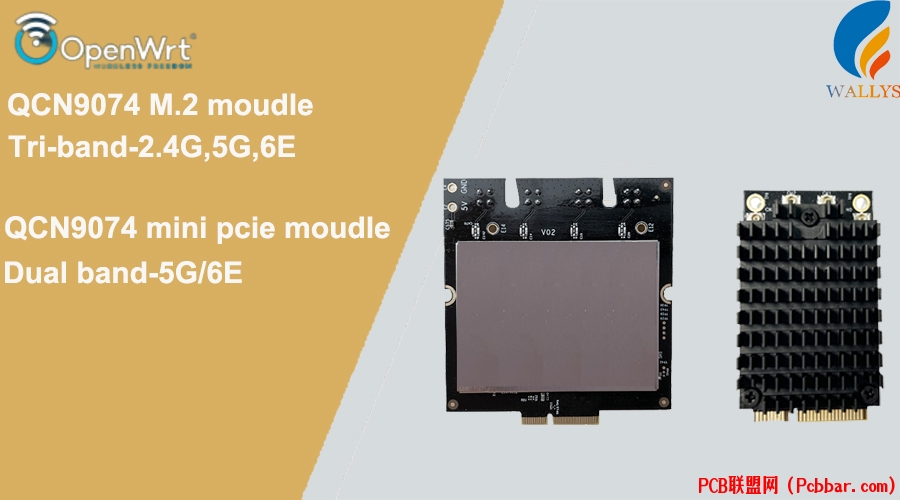

DR9074-Triband based on QCN9024 Chipset is an enterprise wireless module integrated with 4x4 MU-MIMO Dual Band Wireless Module designed specifically to provide users with mobile access to high-bandwidth video streaming, voice, and data transmission for office and challenging RF environment in factories, warehouses establishment.
Parameter | Rating | Unit | Operating Temperature Range | -20 to 70 | ºC | Storage Temperature Range | -40 to 90 | ºC | Operating Humidity Range | 5 to +95 (non-condensing) | % | Storage Humidity Range | 0 to +90 (non-condensing) | % |
Symbol
| Parameter
| Chipset
| Qualcomm Atheros QCN9024
| WLAN Host Interface
| PCI Express 3.0 Interface
| System Memory
| 2Mbit serial I²C bus EEPROM
| Standard Operating Voltage
| 5V
| Operating Systems
| QSDK
| Host Interface
| M.2 E Key
| Antenna Cable / Port
| 4 x MMCX Connectors,4T4R
| Frequency Range
| 2.412GHz-2.472GHz & 5.18GHz-5.825GHz & 5.925GHz-7.125GHz
| Data Rates for WALN
| Maxim 23dBm per chain, up to 4949Mbps
| Channel Spectrum Widths for WLAN
| Support 20/40/80/160MHz
| Modulation Techniques
| OFDMA: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM
| Temperature Range
| Operating: -20°C to 70°C, Storage: -40°C to 90°C
| Humidity
| Operating: 5% to 95% (non-condensing), Storage: Max. 90% (non-condensing)
| Certification
| TBD
| Reference Design
| PN02 .7 | Power Consumption | TBD
| Dimensions (WxHxD)
| 57mm x 63mm x 6mm
|
| Radio TX RX Specifications(5.180GHz- 7.125GHz) |
Mode | Data rate | TX power(dbm) (per chain) | TX power(dbm) (4 chains) | RX Sensitivity(dbm) | Tolerance | 5Ghz 802.11a | 6Mbps | 20 | 26 | -97 | ±2dB | 54Mbps | 19 | 25 | -82 | ±2dB | 5Ghz 802.11n/ac VHT20 | MCS0 | 20 | 26 | -97 | ±2dB | MCS7 | 17 | 23 | -83 | ±2dB | MCS8 | 16 | 22 | -81 | ±2dB | 5Ghz 802.11n/ac VHT40 | MCS0 | 19 | 25 | -95 | ±2dB | MCS7 | 17 | 23 | -80 | ±2dB | MCS8 | 16 | 22 | -77 | ±2dB | MCS9 | 15 | 21 | -74 | ±2dB | 5Ghz 802.11n/ac VHT80 | MCS0 | 19 | 25 | -91 | ±2dB | MCS7 | 17 | 23 | -75 | ±2dB | MCS8 | 16 | 22 | -72 | ±2dB | MCS9 | 15 | 21 | -69 | ±2dB | 5GHz 802.11ax HE20 | MCS0 | 19 | 25 | -96 | ±2dB | MCS9 | 16 | 22 | -77 | ±2dB | MCS10 | 15 | 21 | -74 | ±2dB | MCS11 | 14 | 20 | -71 | ±2dB | 5GHz 802.11ax HE40 | MCS0 | 19 | 25 | -94 | ±2dB | MCS9 | 16 | 22 | -74 | ±2dB | MCS10 | 15 | 21 | -71 | ±2dB | MCS11 | 14 | 20 | -68 | ±2dB | 5GHz 802.11ax HE80 | MCS0 | 18 | 24 | -91 | ±2dB | MCS9 | 15 | 21 | -71 | ±2dB | MCS10 | 14 | 20 | -69 | ±2dB | MCS11 | 13 | 19 | -66 | ±2dB | 5GHz 802.11ax HE160 | MCS0 | 18 | 24 | -86 | ±2dB | MCS9 | 13 | 19 | -65 | ±2dB | MCS10 | 12 | 18 | -62 | ±2dB | MCS11 | 11 | 17 | -59 | ±2dB |
| Radio TX RX Specifications(2.412GHz-2.472GHz)
|
Mode | Data rate | TX power(dbm) (per chain) | TX power(dbm) (4 chains) | RX Sensitivity(dbm) | Tolerance | 2.4Ghz 802.11b | 1Mbps | 20 | 26 | -102 | ±2dB
| 2Mbps | 20 | 26 | -99 | | 5.5Mbps | 20 | 26 | -97 | | 11Mbps | 19 | 25 | -95 | | 2.4Ghz 802.11g | 6Mbps | 20 | 26 | -97 | | 54Mbps | 19 | 25 | -83 | | 2.4Ghz
802.11n/ac VHT20
| MCS0 | 20 | 26 | -95 | | MCS7 | 17 | 23 | -78 | | 2.4Ghz
802.11n/ac VHT40
| MCS0 | 19 | 25 | -93 | | MCS7 | 17 | 23 | -73 | | 2.4Ghz
802.11ax HE20
| MCS0 | 19 | 25 | -95 | | MCS8 | 17 | 23 | -77 | | MCS9 | 16 | 22 | -75 | | MCS10 | 15 | 21 | -72 | | MCS11 | 14 | 20 | -69 | | 2.4Ghz
802.11ax HE40
| MCS0 | 19 | 25 | -92 | | MCS8 | 17 | 23 | -75 | | MCS9 | 16 | 22 | -72 | | MCS10 | 15 | 21 | -69 | | MCS11 | 14 | 20 | -66 | |
Pin No. | 51Name | Pin No. | Name | 1 | GND | 2 | VDD3P3_ PCIE | 3 | | 4 | VDD3P3_ PCIE | 5 | GND | 6 | PCIE_ LED0 | 7 | TP19 | 8 | GPIO46 WCI2 UART TXD PCIE | 9 | | 10 | GPIO47_ WCI2_ UART_RXD_ PCIE | 11 | | 12 | | 13 | | 14 | | 15 | VDD_XPA_ PCIE | 16 | PCIE_ LED1 | 17 | VDD_XPA_ PCIE | 18 | GND | 19 | VDD_XPA_ PCIE | 20 | | 21 | VDD_XPA_ PCIE | 22 | | 23 | VDD_XPA_ PCIE | | | 33 | GND | 32 | | 35 | PCIE0 RX0 P | 34 | | 37 | PCIE0_ RX0_ N | 36 | | 39 | GND | 38 | MOD BT STS 2 | 41 | PCIE0_TX0_ P | 40 | MOD_WL_ACT_2 | 43 | PCIE0_TX0_ N | 42 | PINE_BT_ ACT_2 | 45 | GND | 44 | MOD_ BT_ STS | 47 | PCIE0 REFCLK P | 46 | MOD WL ACT | 49 | PCIE0_ REFCLK_ N | 48 | PINE_ BT_ACT | 51 | GND | 50 | | 53 | PCIE0_ CLKREQ _3 P3 _ N | 52 | PCIE0_ PERST_3P3 | 55 | PCIE0_WAKE _3 P3_ N | 54 | | 57 | GND | 56 | | 59 | PCIE0 RX1 P | 58 | | 61 | PCIE0_ RX1_ N | 60 | | 63 | GND | 62 | | 65 | PCIE0_TX1_ P | 64 | | 67 | PCIE0_TX1_ N | 66 | | 69 | GND | 68 | | 71 | | 70 | | 73 | | 72 | VDD3P3_ PCIE | 75 | GND | 74 | VDD3P3_ PCIE |
|
